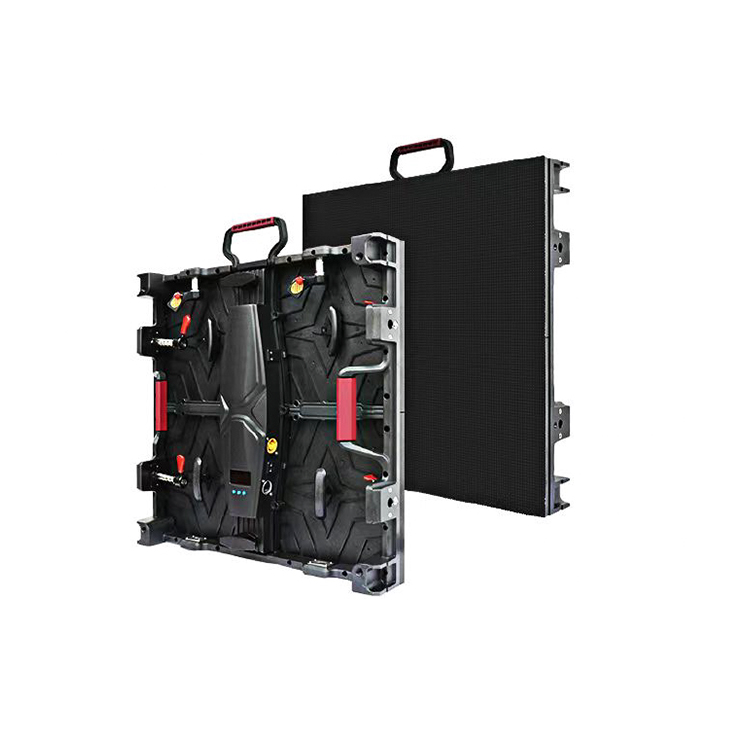

LED Video Wall System for Video Production

Led video wall for video production must be different from those led wall of other events. So, this series is specially made for video production. It also has solution for events like wedding, games, or expo.

Pixel Pitch: 1.95mm/ 2.315mm/ 2.5mm/ 2.604mm/ 2.9761mm/ 3.91mm/ 4.81mm/ 5.95mm

Cabinet Size:1000mm*500mm or 500mm*500mm

Refresh rate: 3840Hz-7680Hz

Brightness: 600nits-5000nits

Used for: Indoor & Outdoor

  • Product Detail

For Video production shooting, it usually requires of a led video wall system of high refresh rate, up to 7,680Hz sometimes or a customized brightness, etc., This VR series have all the features of easy-installation, modular panels like others. It is equipped with a LCD screen showing the working status of modular panels.

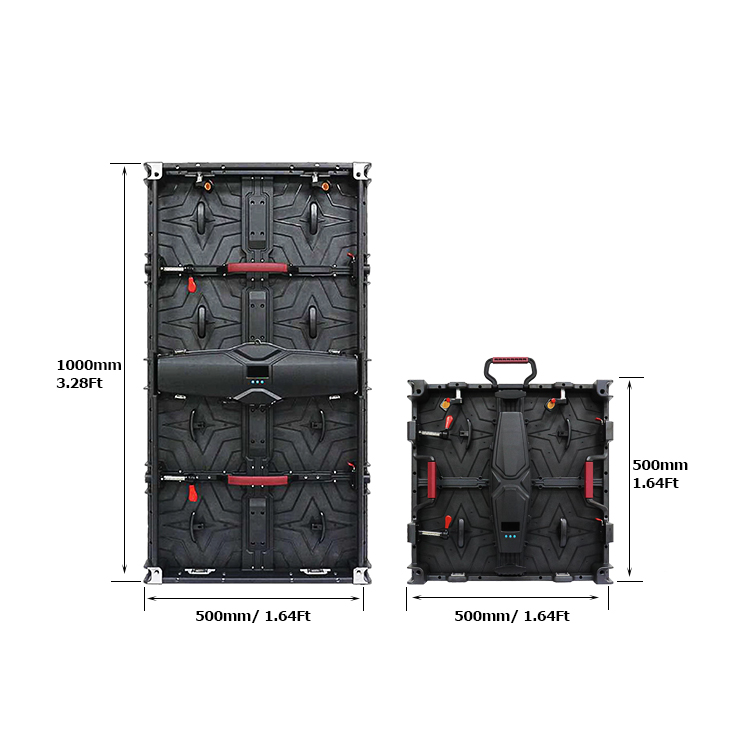

Modular LED Screen Panel of Two Sizes

led video wall system

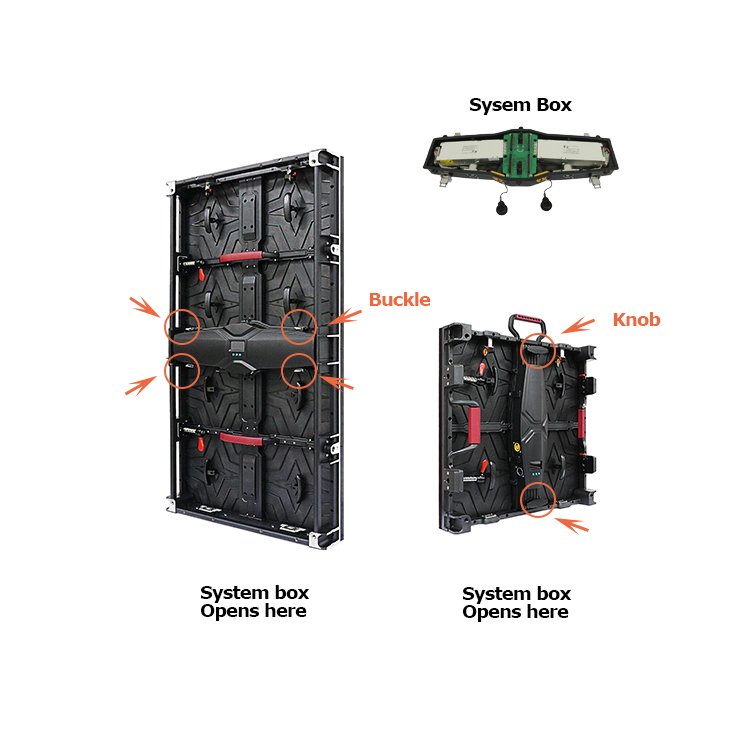

Easy Sytem Box Opened with Ease for Fast Trouble-shooting

LED video wall in different sizes

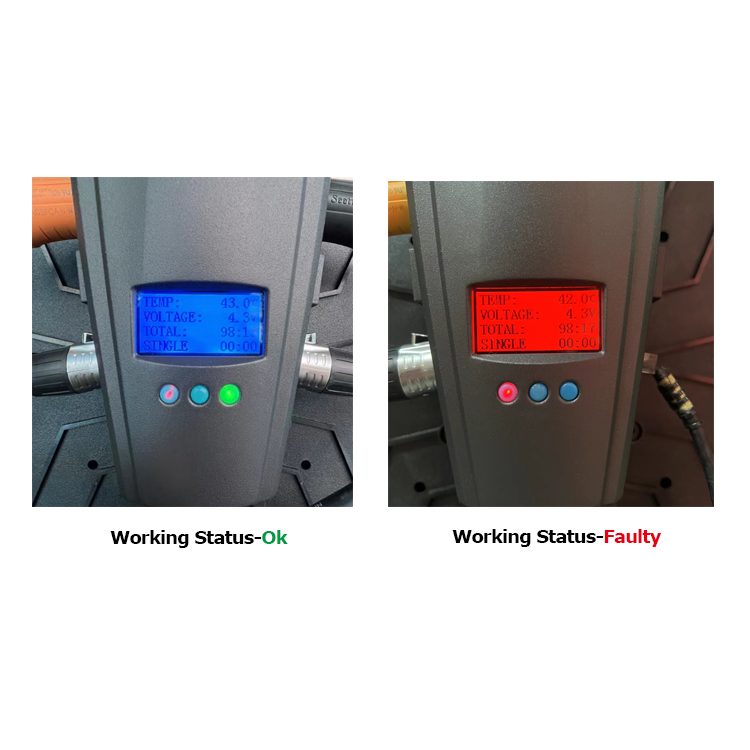

Smart LCD Panel Showing Working Status of the LED Wall System

Models for XR Video Production

ModelVR1.95XRVR2.315XRVR2.604XR
Pixel Pitch1.95mm2.315mm2.604mm
Color1R1G1B1R1G1B1R1G1B
Module Size250mm*250mm250mm*250mm250mm*250mm
Cabinet Size 500mm*500mm500mm*500mm500mm*500mm
Brightness1,500nits1,500nits1,500nits
Refresh Rate7680Hz7680Hz7680Hz
VoltageAC110V-220VAC110V-220VAC110V-220V
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Cabinet Weight8KG8KG8KG

Models for Indoor Events

ModelVR1.5625I VR1.95IVR2.5IVR2.604IVR2.976IVR3.91I
Pixel Pitch1.56mm1.95mm2.5mm2.604mm2.976mm3.91mm
Color1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Brightness600nits800nits800nits800nits800nits1000nits
Refresh Rate3840Hz3840Hz3840Hz3840Hz3840Hz3840Hz
VoltageAC110V-220VAC110V-220VAC110V-220VAC110V-220VAC110V-220VAC110V-220V
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Cabinet Weight8KG/14.5KG8KG/14.5KG8KG/14.5KG8KG/14.5KG8KG/14.5KG8KG/14.5KG

Models for Outdoor Events

ModelVR2.604OVR2.976OVR3.91OVR4.81OVR5.95O
Pixel Pitch2.604mm2.976mm3.91mm4.81mm5.95mm
Color1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Brightness4500nits4500nits5000nits5000nits5000nits
Refresh Rate3840Hz3840Hz3840Hz3840Hz3840Hz
VoltageAC110V-220VAC110V-220VAC110V-220VAC110V-220VAC110V-220V
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Cabinet Weight8KG/14.5KG8KG/14.5KG8KG/14.5KG8KG/14.5KG8KG/14.5KG
