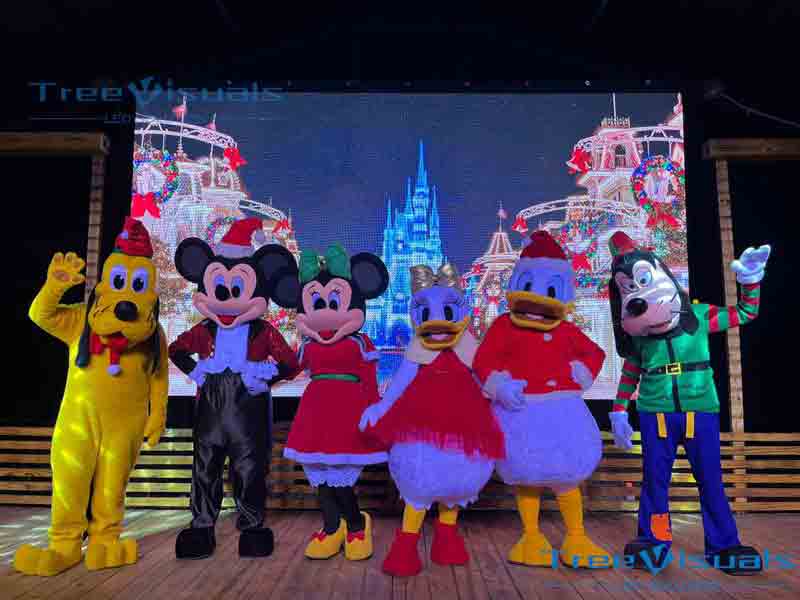

P3.91 is a very popular resolution for events stage. Because it can deliver better quality of image and videos. Of course, events led screen has other options of resolution like 2.5mm, 2.6mm, 2.97mm and 4.81mm. In addition, these options both has indoor and outdoor version.

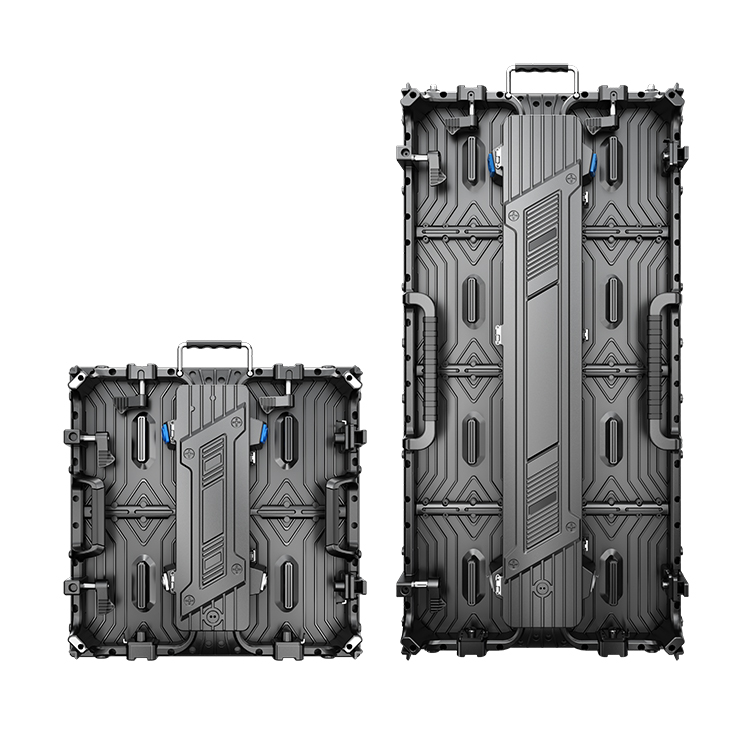

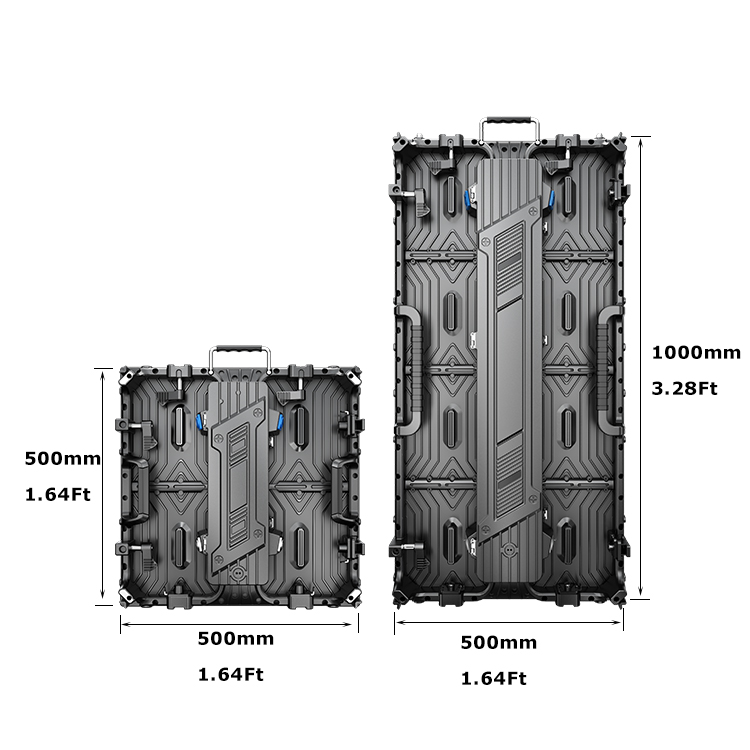

The events led screen V-Line series offer two different sizes of cabinet. These two sizes of cabinet are compatible to install together for a stage led screen with height of 1.5meters, 2.5meters or 3.5meters etc.
V-LINE LED WALL
– Die-casting Aluminum
– Reliable Connectors
– Concave & Convex Install
Sizes for Format of 16:9 Ratio

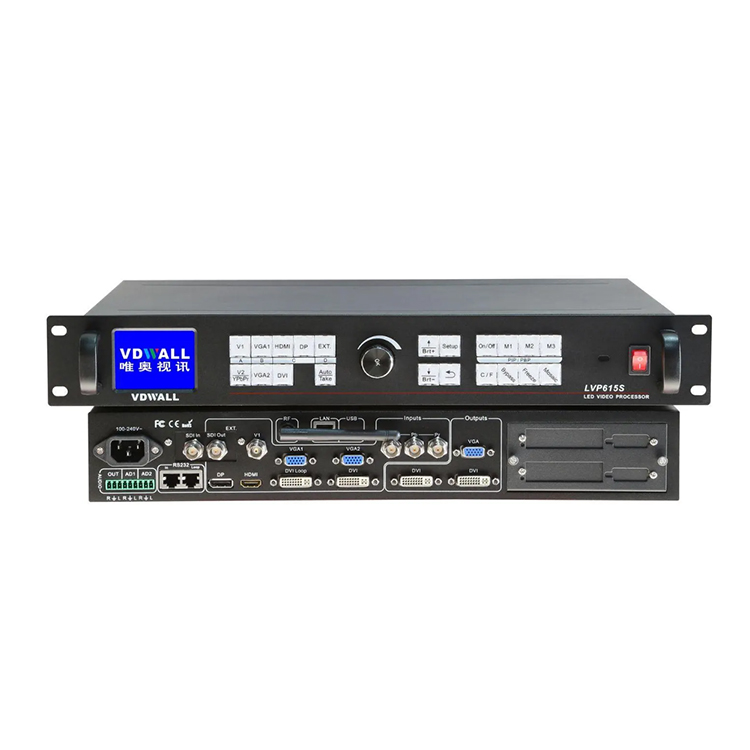

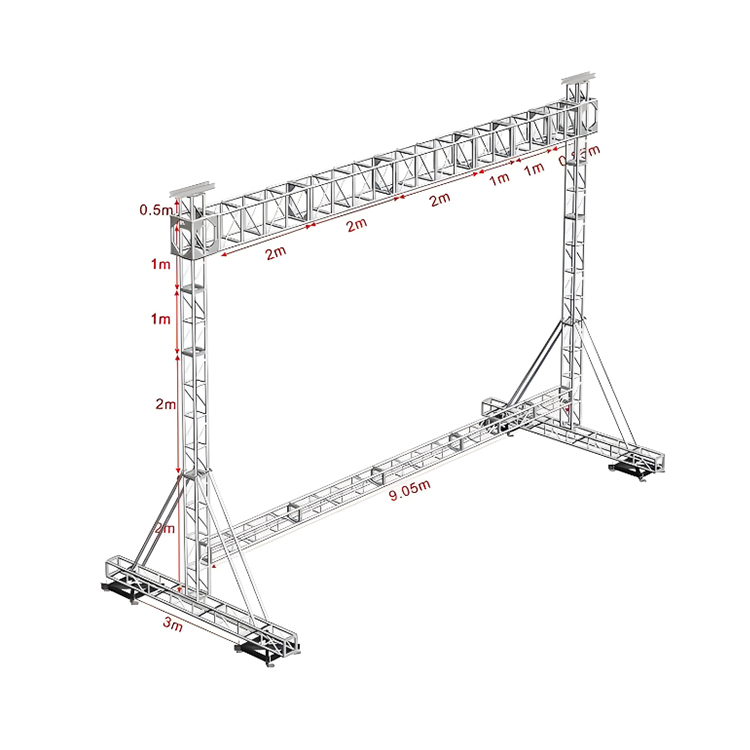

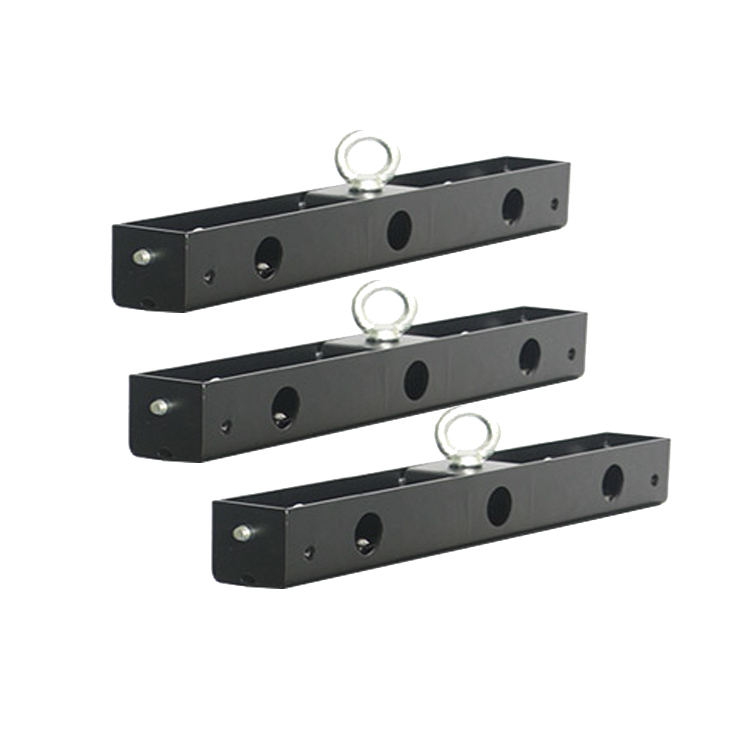

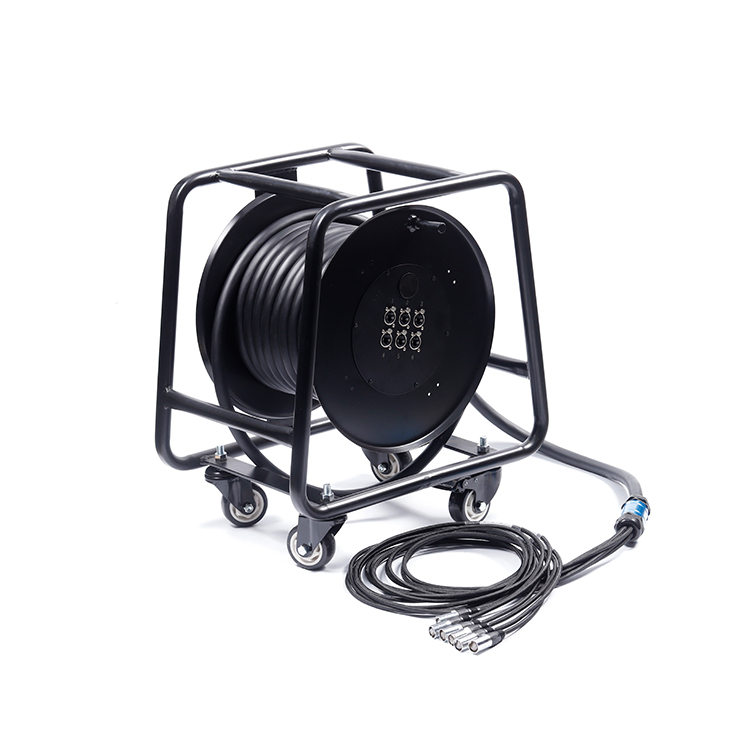

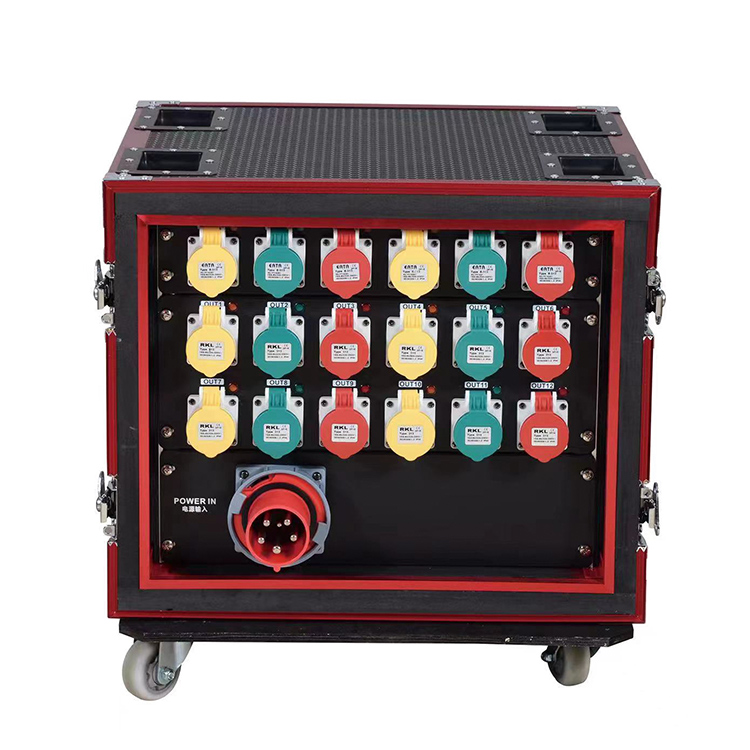

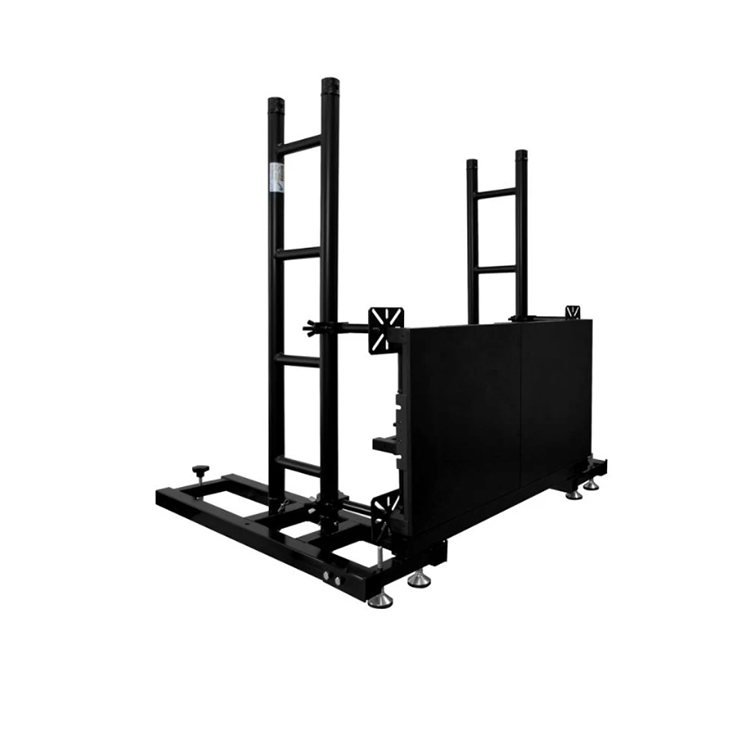

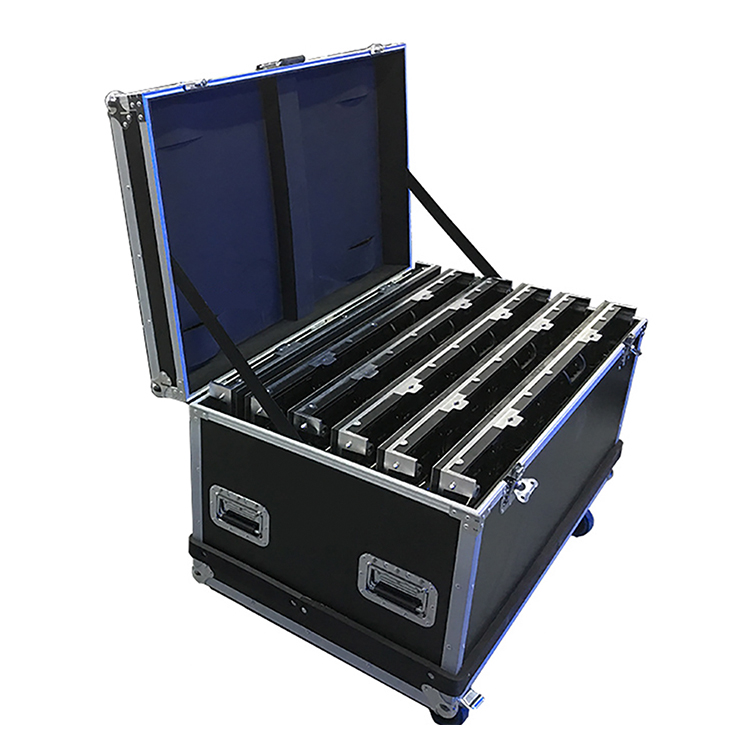

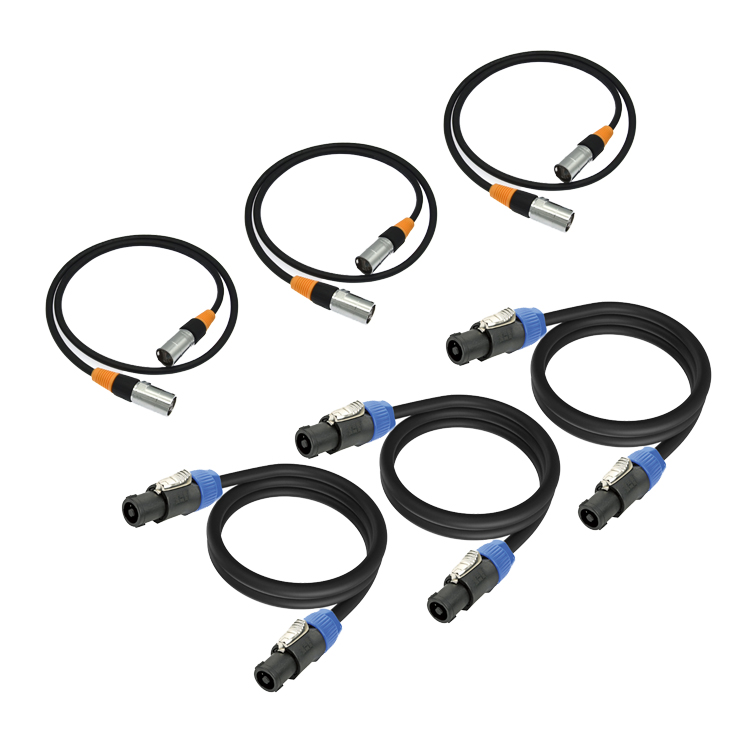

LED Wall Screen Accessories

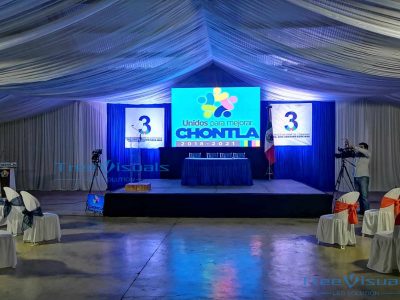

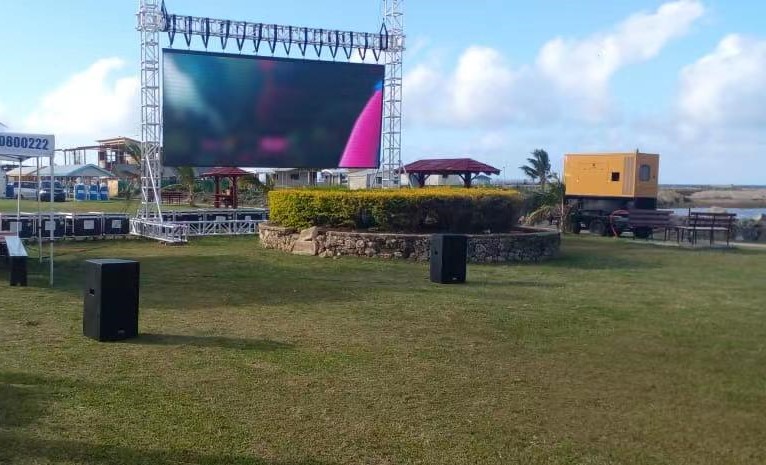

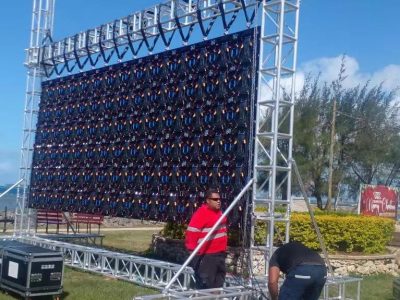

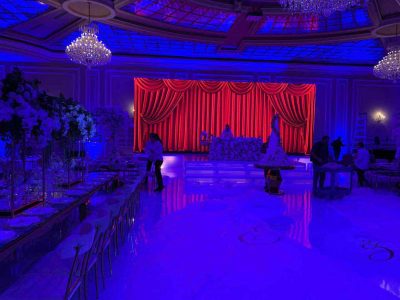

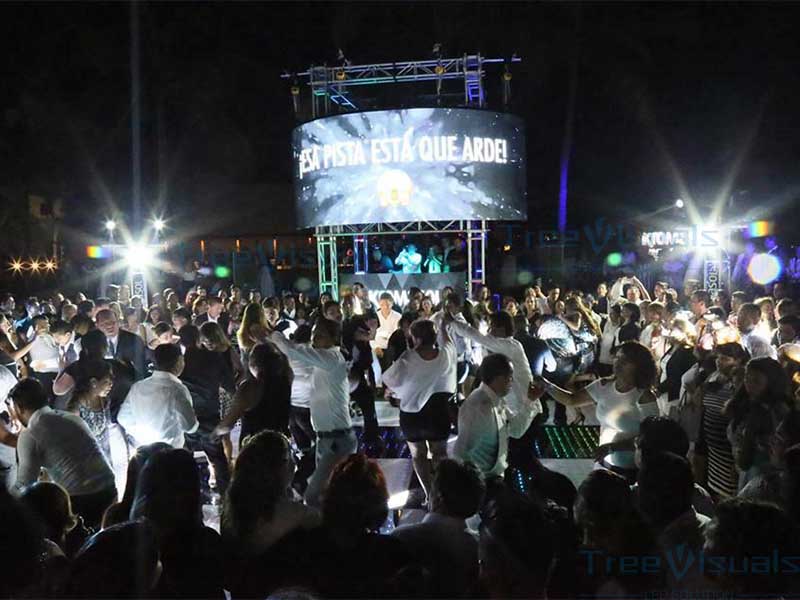

LED Screen for Applications
Models for Indoor Events
| Model | V-LINE2.5 indoor | V-LINE2.6 Indoor | V-LINE2.97 Indoor | V-LINE3.91 Indoor | V-LINE4.81 Indoor |
| Pixel Pitch | 2.5mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 1,000nits | 1,000nits | 1,000nits | 1,000nits | 1,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
Models for Outdoor Events
| Model | V-LINE2.6 Outdoor | V-LINE2.97 Outdoor | V-LINE3.91 Outdoor | V-LINE4.81 Outdoor |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 4,500nits | 4,500nits | 5,000nits | 5,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
