For LED screen of permanent installation for outdoor billboard, brightness always matters when showing messages in the sun to people. To raise up the brightness of outdoor led screen billboard, this series use higher scan, such as 1/8 scan for P3.91 and 1/7 scan for P4.81. So, the brightness of this series can be up to 20%-30% higher than the one available in the market.

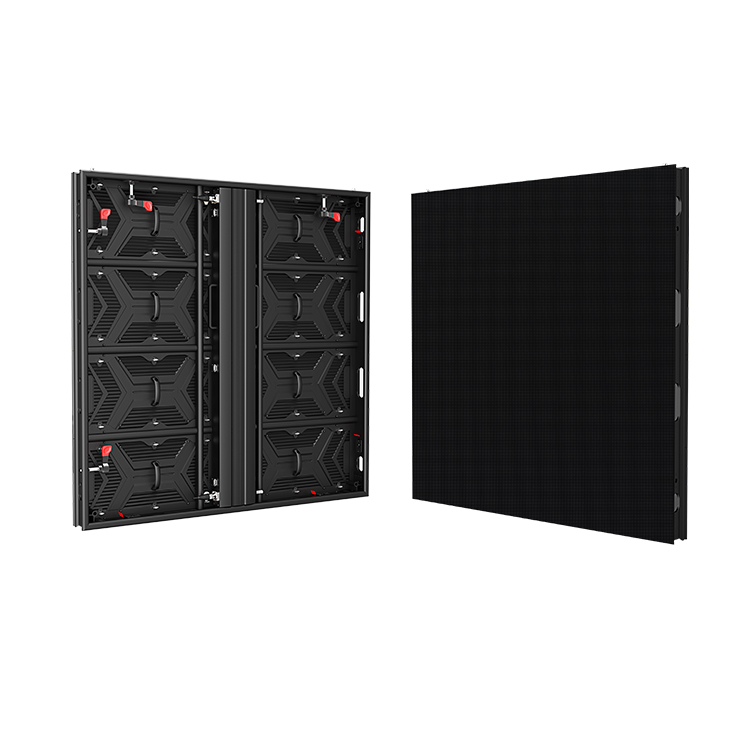

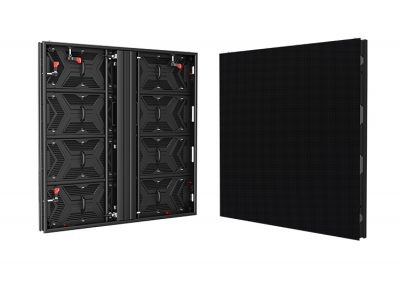

Standard 1M x 1M LED Cabinet
Optional cabinet 1.5M x 1M/ 1.5M x 0.5M/ 1M x 0.5M

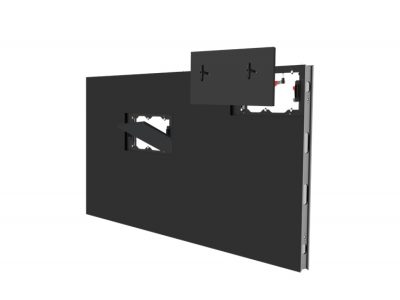

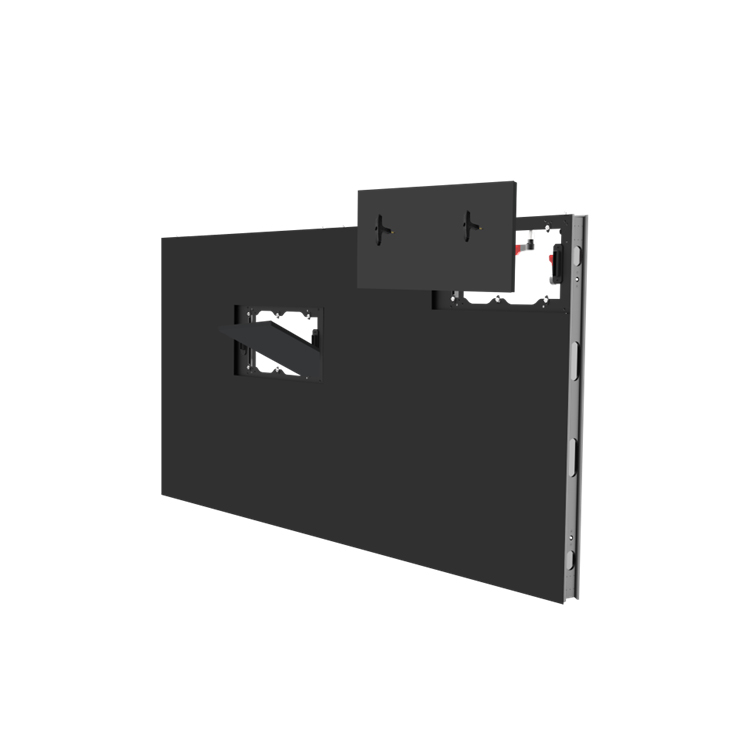

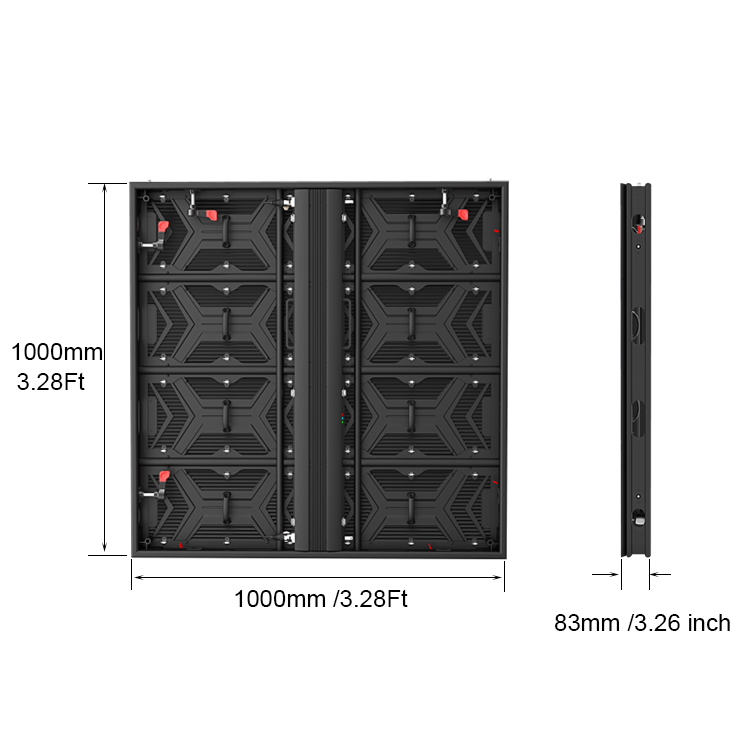

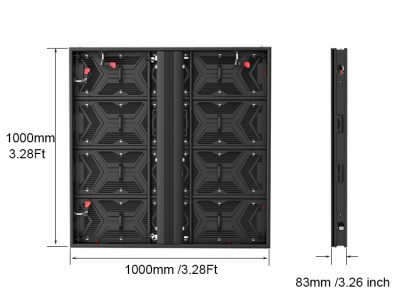

Slim Design & Front Accessed

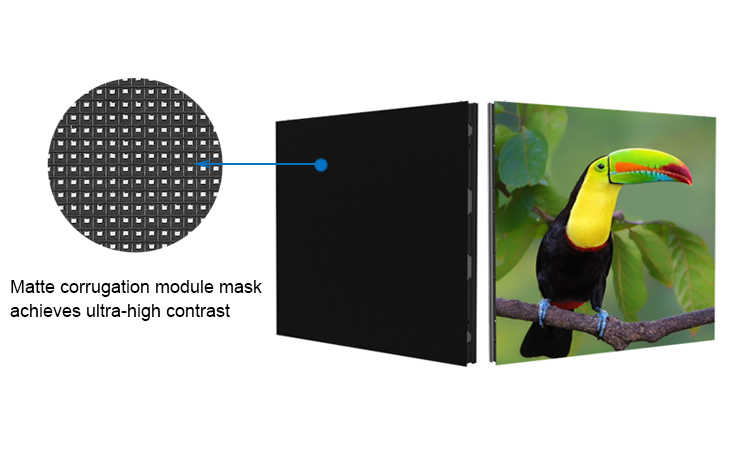

Higher Contrast & Higher Brightness up to 6,000nits
Specification
| Model | V-SLIM2.97 | V-SLIM3.91 | V-SLIM4.81 |
| Pixel Pitch | 2.97mm | 1.25mm | 1.56mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 500mm*250mm | 500mm*250mm | 500mm*250mm |
| Cabinet Size | 1Meter*1Meter | 1Meter*1Meter | 1Meter*1Meter |
| Cabinet Resolution | 336 x336 dots | 256 x256 dots | 208 x208 dots |
| Brightness | 4,500nits | 6,000nits | 6,000nits |
| Scan | 1/21 | 1/8 | 1/7 |
| Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Weight | 22.5KG | 22.5KG | 22.5KG |
| Power Consumption Max. | 800Watts | 800Watts | 800Watts |
| Power Consumption Avg. | 240watts | 240watts | 240watts |
