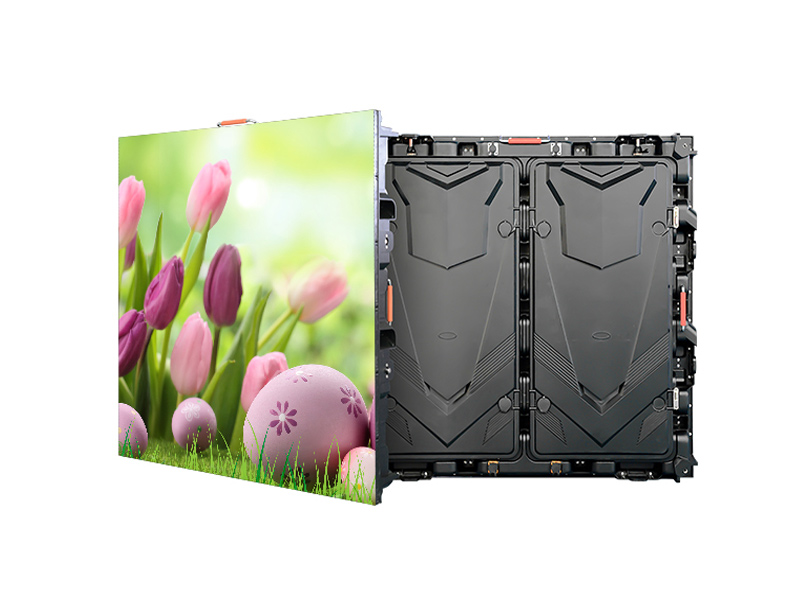

Die-casting Aluminum alloy Cabinet, Light weight & High Precision

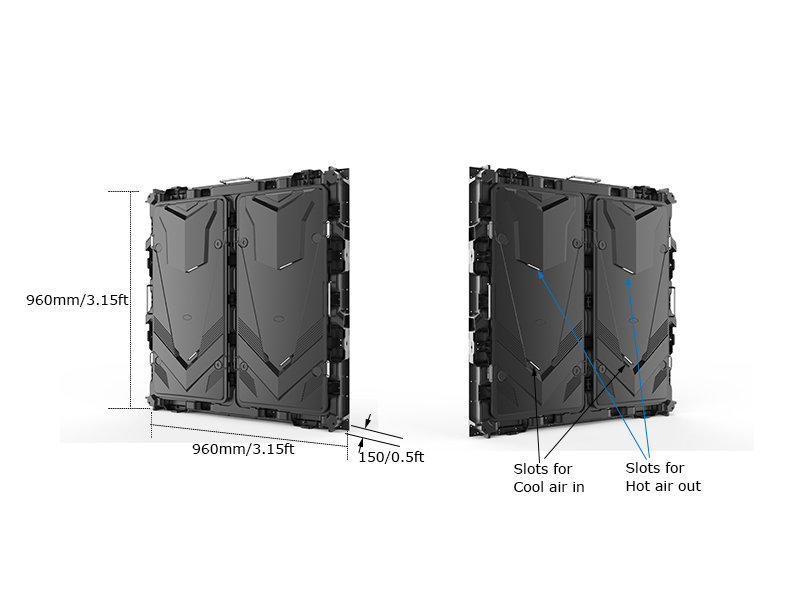

One standard size, Multiple resolution available

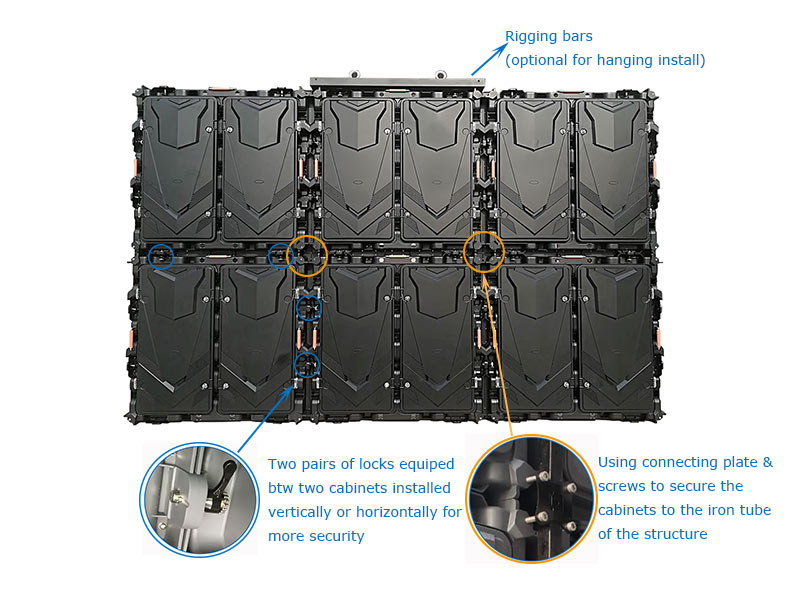

Each panel connects to another to make bigger billboard

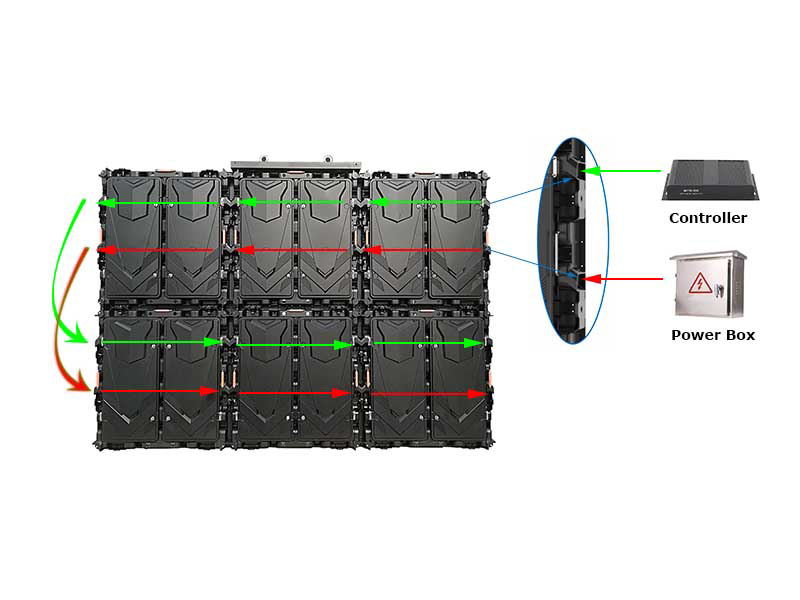

Signal & Power going through the side lots to be connected
All Pixel Pitch Available-Rear Maintenance
| Model | V-board4R | V-board5R | V-board5.92R | V-board6.67R | V-board8R | V-board10R |
| Pixel Pitch | 4mm | 5mm | 5.92mm | 6.67mm | 8mm | 10mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm |
| Cabinet Size | 960mm*960mm | 960mm*960mm | 960mm*960mm | 960mm*960mm | 960mm*960mm | 960mm*960mm |
| Cabinet Resolution | 240*240 pixels | 192*192 pixels | 162*162 pixels | 144*144 pixels | 120*120 pixels | 96*96 pixels |
| Brightness | 7,000-7,500nits | 5,500-6,000nits | 5,500-6,000nits | 5,500-6,000nits | 5,500-6,000nits | 5,500-6,000nits |
| Scan | 1/10 | 1/8 | 1/7 | 1/6 | 1/5 | 1/2 |
| Refresh Rate | 1920Hz up | 1920Hz up | 1920Hz up | 1920Hz up | 1920Hz up | 1920Hz up |
| Voltage | AC 110V-220V | AC 110V-220V | AC 110V-220V | AC 110V-220V | AC 110V-220V | AC 110V-220V |
| Power/Average | 110W | 140W | 140W | 140W | 140W | 140W |
| Power/Max. | 440W | 525W | 525W | 525W | 525W | 525W |
| Cabinet Material | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy |
| Weight | 27KG | 27KG | 27KG | 27KG | 27KG | 27KG |
| IP Grade (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
All Pixel Pitch Available-Front Maintenance
| Model | V320-board4F | V320-board5.33F | V320-board6.67F | V320-board8F | V320-board10F |
| Pixel Pitch | 4mm | 5.33mm | 6.67mm | 8mm | 10mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 320mm*320mm | 320mm*320mm | 320mm*320mm | 320mm*320mm | 320mm*320mm |
| Cabinet Size | 960mm*960mm | 960mm*960mm | 960mm*960mm | 960mm*960mm | 960mm*960mm |
| Cabinet Resolution | 240*240 pixels | 180*180 pixels | 144*144 pixels | 120*120 pixels | 96*96 pixels |
| Brightness | 6,000nits | 5,500-6,000nits | 5,500-6,000nits | 5,500-6,000nits | 6,000-6,800nits |
| Scan | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Refresh Rate | 1920Hz up | 1920Hz up | 1920Hz up | 1920Hz up | 1920Hz up |
| Voltage | AC 110V-220V | AC 110V-220V | AC 110V-220V | AC 110V-220V | AC 110V-220V |
| Power/Average | 110W | 140W | 140W | 140W | 140W |
| Power/Max. | 440W | 525W | 525W | 525W | 525W |
| Cabinet Material | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy | Die-casting Magnesium Aluminum Alloy |
| Weight | 27KG | 27KG | 27KG | 27KG | 27KG |
| IP Grade (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
