Stage building requires higher standard than ever. Flying bars and floor-standing truss are the important gadgets. But, having more possibility in sizes are challenging the design of LED screen cabinet. V-show stage LED screen are designed for professional events. Because it has two types of cabinet design, and they can be installed together vertically or horizontally for different sizes requirement.

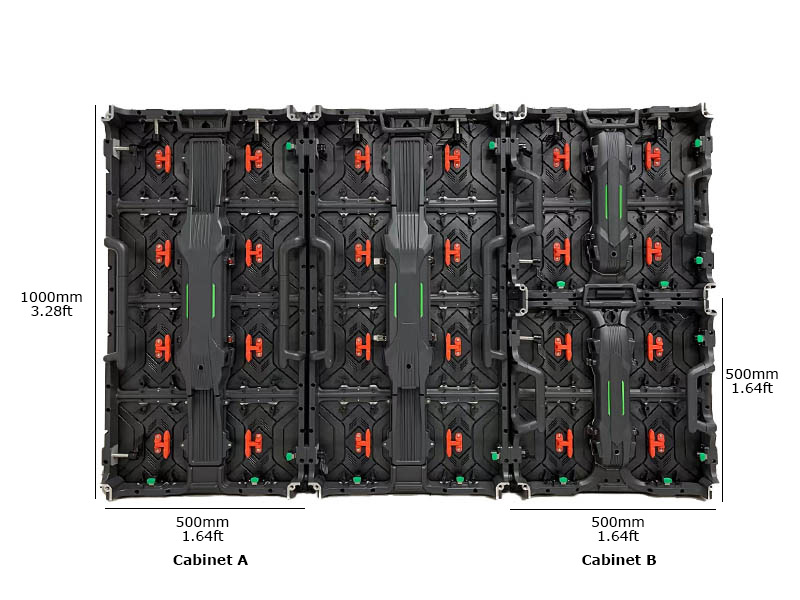

Two Different Sizes of LED Cabinet Can Be Installed Together for Different Layouts of LED Video Screen

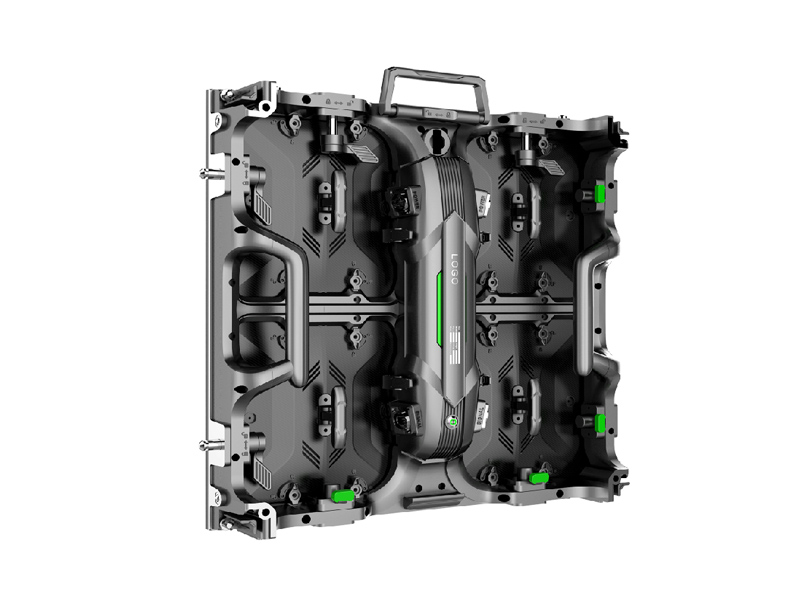

500*500 Die-casting Aluminum LED Cabinet

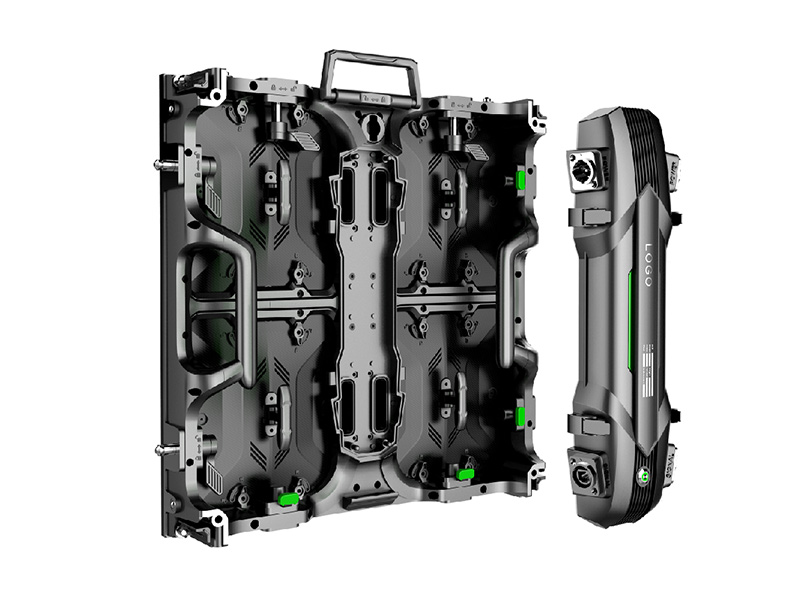

Power System Box Easily Taken Off

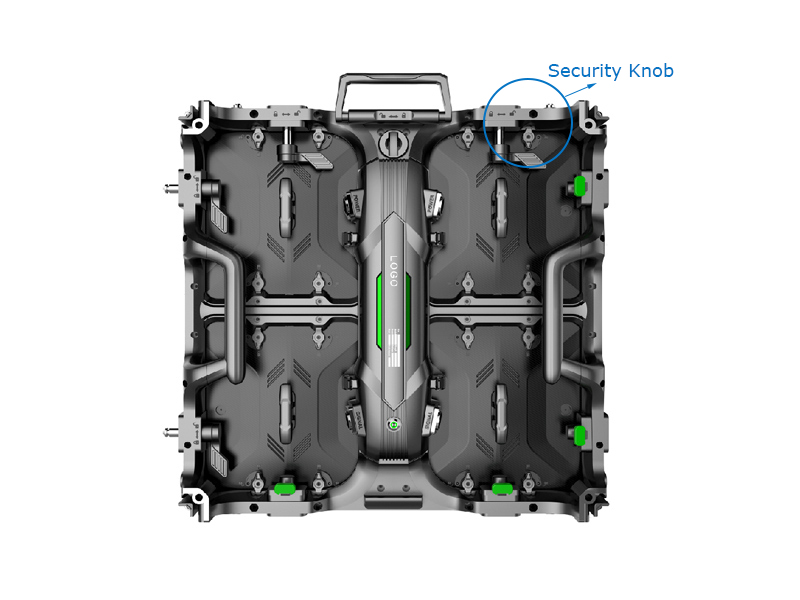

16 Pcs Security Knobs for Quick Installation

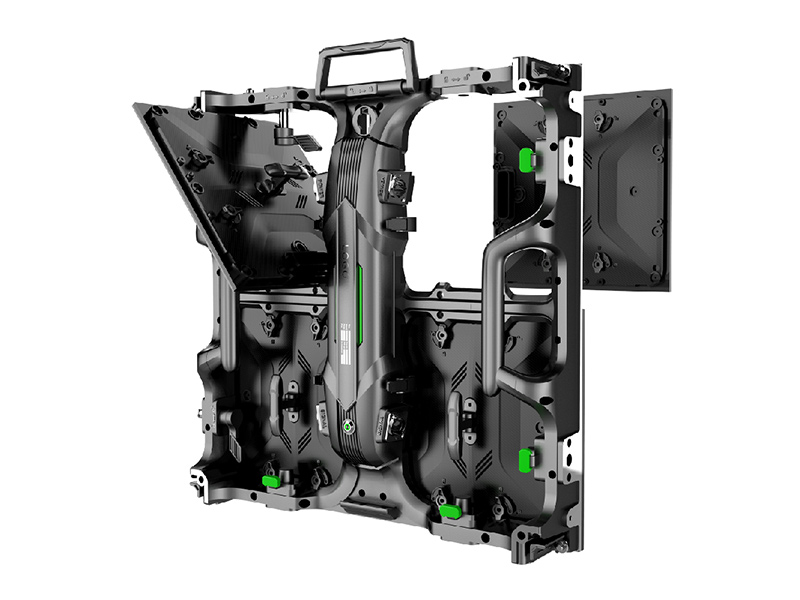

LED Modules Taken from the Front and Rear
Models for Indoor Events
| Model | V-show2.5 indoor | V-show2.6 Indoor | V-show2.97 Indoor | V-show3.91 Indoor | V-show4.81 Indoor |
| Pixel Pitch | 2.5mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 1,000nits | 1,000nits | 1,000nits | 1,000nits | 1,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
Models for Outdoor Events
| Model | V-show2.6 Outdoor | V-show2.97 Outdoor | V-show3.91 Outdoor | V-show4.81 Outdoor |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 4,500nits | 4,500nits | 5,000nits | 5,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
