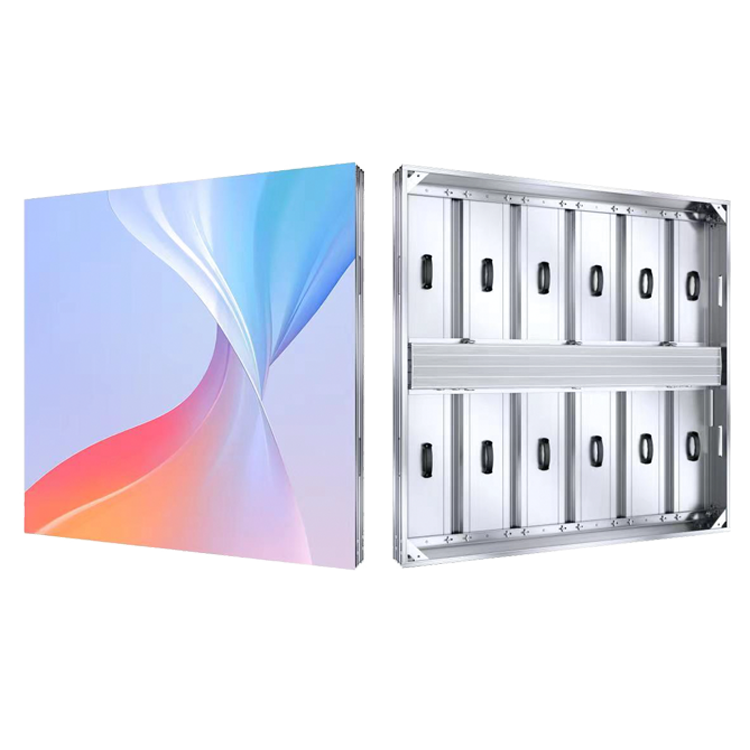

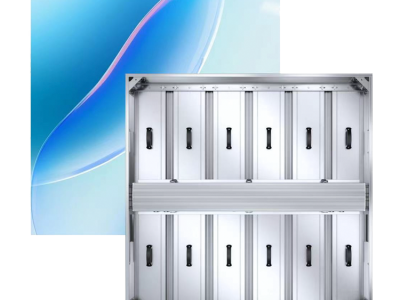

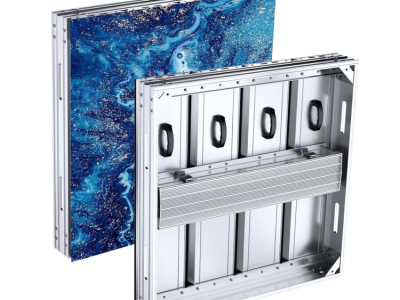

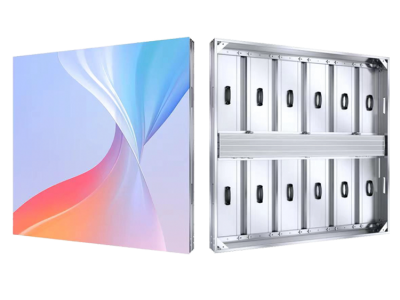

All Aluminum Outdoor LED Screen Panel

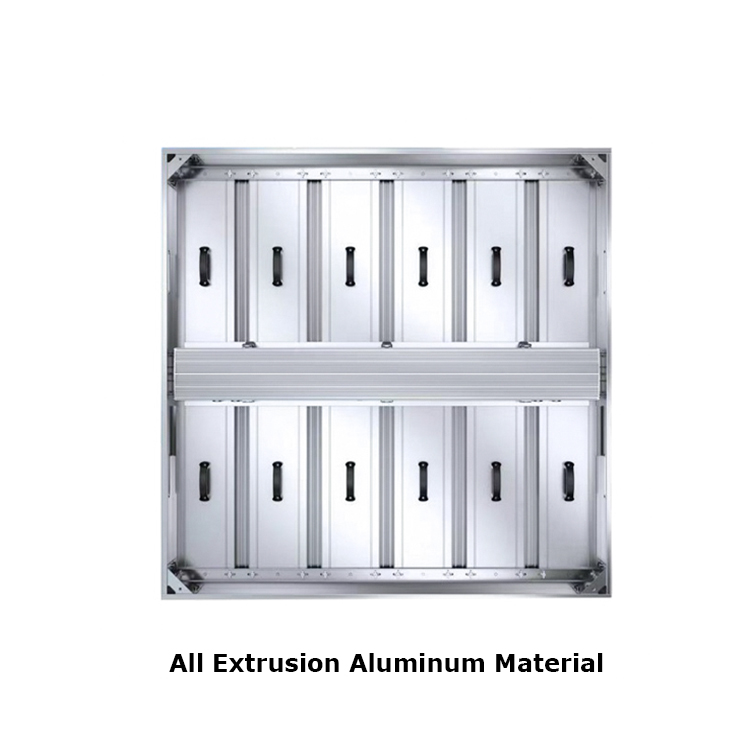

This outdoor LED screen panel are made of all extrusion aluminum. It can be classified to be high-end outdoor led panel.

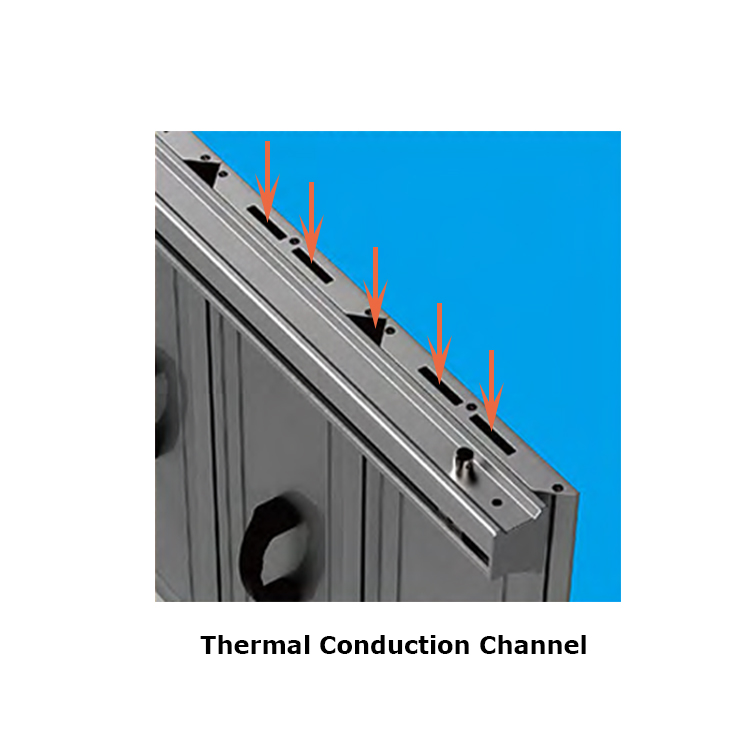

The patented design is its thermal conduction channel on the back of the cabinet. The design looks like a hollow core slab, which the air could go through the hollow core and take away the heat inside of the led panel. We all know that the high temperature from environment will have great impacts on the aging of the leds. That explains why dimming would show up on every led billboard after years of use.

If the led billboards would be installed in area such as Dubai and Mexico, then this led billboard would be your preferable solution.

SPECIAL FEATURES

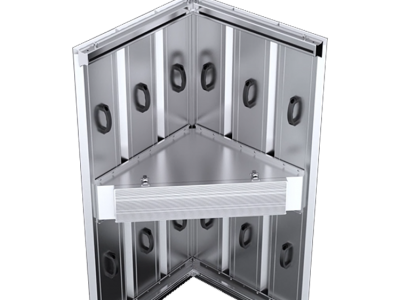

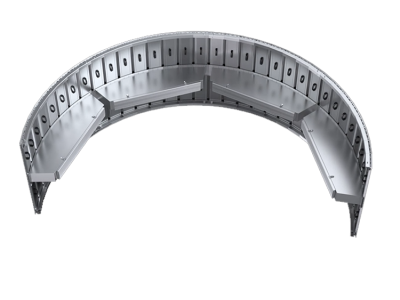

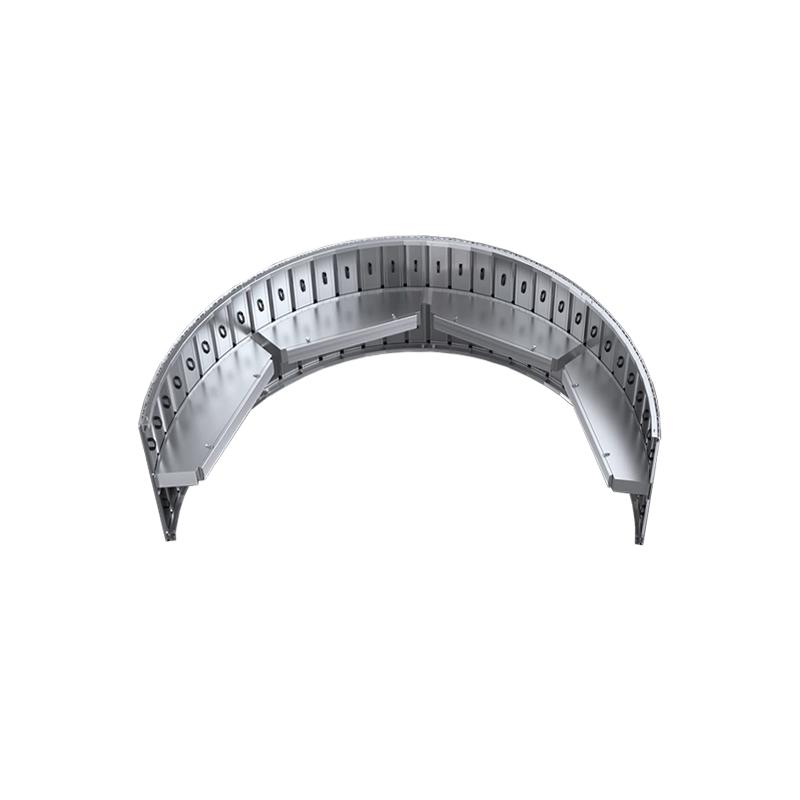

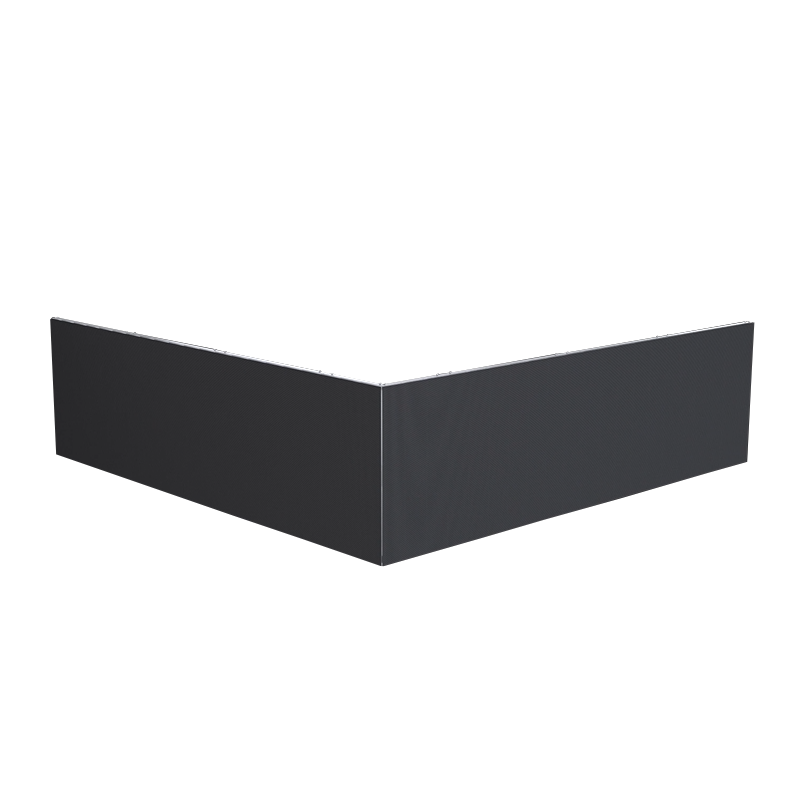

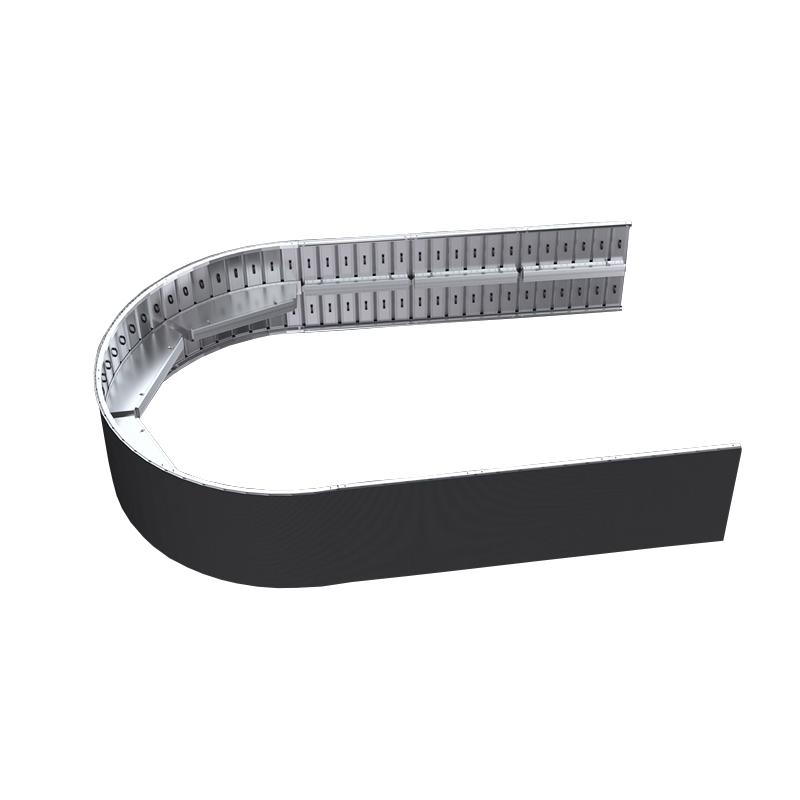

LED BILLBOARD IN CONVEX OR ANGLED SHAPE

SPECIFICATION

Pixel Pitch(mm)	P3.076	P4	P5	P6.67	P8	P10
Module Size	160x640mm	160x960mm	160x960mm	160x960mm	160x960mm	160x960mm
Cabinet Size	640x640mm	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm
Cabinet Weight	14KGs	27KGs	27KGs	27KGs	27KGs	27KGs
Brightness	5, 000nits	5, 500nits	5, 500nits	6, 000nits	6, 000nits	6, 000nits
Brightness-High	/	7, 000nits	7, 000nits	8, 000nits	8, 000nits	8, 000nits
Refresh Rate	3, 840Hz	3, 840Hz	3, 840Hz	3, 840Hz	3, 840Hz	3, 840Hz
Power Maximum	750/m²	750/m²	750/m²	750/m²	750/m²	750/m²
Power Average	225/m²	225/m²	225/m²	225/m²	225/m²	225/m²
Input AC Voltage	AC220-240V	AC220-240V	AC220-240V	AC220-240V	AC220-240V	AC220-240V
Cabinet Material	Extrusion Aluminum	Extrusion Aluminum	Extrusion Aluminum	Extrusion Aluminum	Extrusion Aluminum	Extrusion Aluminum
